CONVEYOR ROLLER PIPE TURNING/BORING HOLE MACHINE

CONVEYOR ROLLER PIPE TURNING/BORING HOLE MACHINE

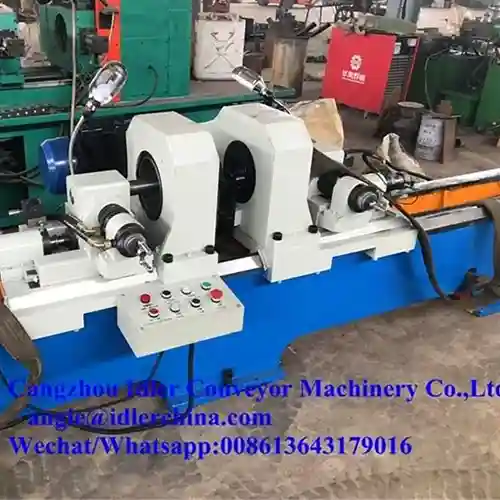

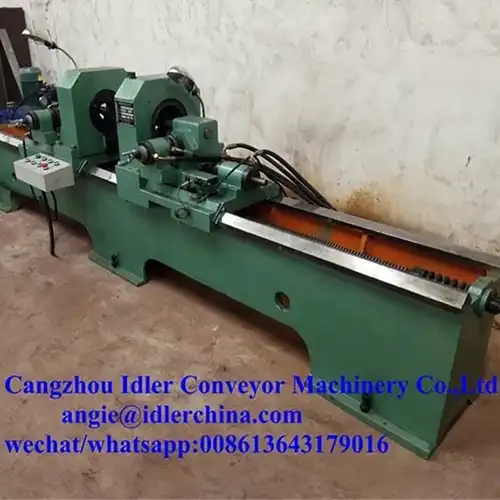

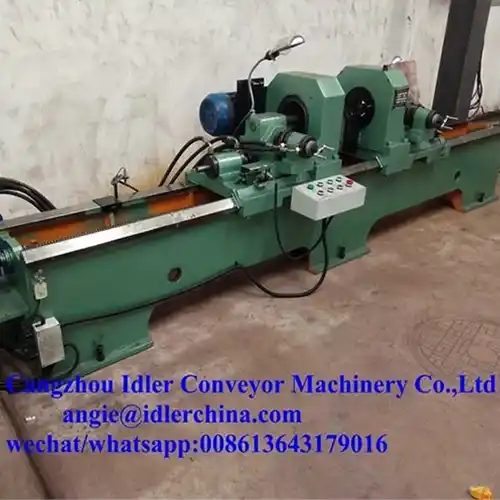

CONVEYOR ROLLER PIPE TURNING HOLE MACHINE is used for processing the spigot at both ends of the steel pipe automatically and can process the spigots of the steel pipe which used in making all kinds of rollers with casting iron and punching bearing housing which produced home and abroad.

Introduction to Conveyor Roller Pipe Turning/Boring Hole Machine

Structure and Overview

CONVEYOR ROLLER PIPE TURNING/BORING HOLE MACHINE is a fundamental apparatus in the assembling and handling businesses, intended to effectively make turning or drilling openings in transport roller pipes. It fills in as a critical part in the creation of transport frameworks, guaranteeing accuracy and unwavering quality in the assembling system.

Product Standards

Our CONVEYOR ROLLER PIPE TURNING/BORING HOLE MACHINE conforms to industry principles, guaranteeing top notch execution and solidness. It complies with severe assembling rules to fulfill the needs of different modern applications.

Product Attributes

  • Precision: Ensures accurate and consistent boring hole creation.

  • Efficiency: Smoothes out the assembling system, saving time and assets.

  • Durability: Developed from strong materials for enduring execution.

  • Versatility: Appropriate for different line breadths and materials.

  • User-Friendly: Simple to work and keep up with.

Product Functions

The Conveyor Roller Pipe Turning/Boring Hole Machine is specifically designed to bore holes with precision and efficiency in conveyor roller pipes. It automates the process, enhancing productivity and reducing manual labor requirements.

Features

  • Advanced machinery for seamless operation.

  • Adjustable settings for customization according to specific requirements.

  • Safety features to ensure operator well-being.

  • Minimal maintenance requirements for prolonged use.

Advantages and Highlights

  • Increases manufacturing efficiency and productivity.

  • Ensures precise and consistent hole boring.

  • Versatile design accommodates various pipe sizes.

  • Robust construction for long-term reliability.

Application Areas

The Transport Roller Line Turning/Drilling Opening Machine finds applications across ventures like assembling, coordinated operations, warehousing, and material taking care of. It is key in the creation of transport frameworks utilized in processing plants, dissemination focuses, and planned operations offices.

OEM Service

We offer OEM administrations to meet the particular necessities and prerequisites of our clients. Our group of specialists teams up intimately with clients to convey custom-made arrangements that line up with their extraordinary determinations.

FAQ

What materials can the machine work with?

The machine is reasonable for working with different materials normally utilized in transport roller pipes, including steel, hardened steel, and plastic.

What upkeep is expected for the machine?

Normal assessment and grease of moving parts are prescribed to guarantee ideal execution. Furthermore, keeping the machine clean from flotsam and jetsam and residue drags out its life expectancy.

Contact Us

For requests or to put in a request, kindly reach us at angie@idlerchina.com. As an endeavor incorporating logical examination, creation, handling, and deals, we are focused on giving top-quality arrangements and great client support.

Conclusion

The Transport Roller Line Turning/Drilling Opening Machine is an irreplaceable device for assembling transport frameworks. With its accuracy, effectiveness, and flexibility, it improves efficiency and guarantees the consistent activity of modern cycles. Reach us today to find out about how our item can help your tasks.


CONVEYOR ROLLER PIPE TURNING HOLE MACHINE EQUIPMENT COMPOSITION

Host, hydraulic station, power box

CONVEYOR ROLLER PIPE TURNING HOLE MACHINE MAIN TECHNICAL PARAMETER

Spindle center height of the machine tool -------------------850mm

Diameter of Steel Pipe for cutting ------------------------φ89-159mm

Length of Steel Pipe for cutting-------------------------------200-2200mm

Spigot depth------------------------------------0-60mm

Slide moving speed-------------------------------2m/min

Spindle speed----------------------------------500r/min

Feeding speed----------------------------------Hydraulic steplessly adjustable

Depth of cut--------------------------------------0-3mm

NO.1 Spindle motor power 1.--------------------------------4 KW  1450r/min

NO.2 Spindle motor power--------------------------------4 KW  1450r/min

Hydraulic System Pressure---------------------------2.5-4Mpa

Hydraulic Motor ---------------------------------------2.2KW

Clamping Motor ---------------------------------------1.5 KW

Flow Rate----------------------------------------------------0-25 L/min

Dimension( Length x width x height)------------------4500×950×1100mm

Distribution box( Length x width x height)------------------500×300×880mm

Hydraulic station( Length x width x height)-----------------680×570×900mm

Production efficiency--------------------------------------------- 240-250 pcs /hour, 15 seconds/PC

Processing Precision:

Diameter tolerance of the spigots at both ends less than IT9
