TK Labyrinth Seal

TK Labyrinth Seal

Material:ABS resin, Nylon, Hdpe, Polyurethane, polyformaldehyde and so on

Introduction to TK Labyrinth Seal

Basic Details of the Product

The TK Maze Seal is a pivotal part intended to give outstanding security against foreign substances and trash in different modern applications. Designed with accuracy, it offers a dependable answer for defend pivoting gear like siphons, blowers, turbines, and engines from hurtful outer components. This creative fixing arrangement flaunts progressed highlights that guarantee ideal execution and life span of apparatus, subsequently decreasing upkeep costs and upgrading functional effectiveness.

Product Standards

The TK Labyrinth Seal adheres to stringent quality standards, including ISO 9001 certification, ensuring consistent product excellence and reliability.

Basic Parameters

Below are the basic parameters of the TK Labyrinth Seal:

ParameterValue
Material

ABS resin, Nylon, Hdpe, Polyurethane, polyformaldehyde and so on

Temperature Range-40°C to +120°C
FeatureDust proof ,Water proof, wear resistant
Seals TypeDTII, TK labyrinth,TK contact and labyrinth, TKII
Seals Specification6204,6205,6206,6207,6304,6305,6306,6307,6308,6309,6310,6312

Product Attributes

  • Robust Construction: Made from premium materials, the TK Maze Seal offers excellent strength and protection from consumption.

  • Precision Engineering: Designed with fastidious tender loving care, guaranteeing exact fitment and dependable execution.

  • Versatile Compatibility: Viable with different shaft widths, making it reasonable for many modern applications.

  • Effective Contaminant Exclusion: Uses maze plan to successfully forestall entrance of impurities, guaranteeing continuous activity of hardware.

Product Functions

  • Sealing: Structures a tight hindrance around the shaft to forestall the section of residue, soil, and different pollutants into the hardware.

  • Protection: Safeguards turning gear from outside components, broadening the help life and decreasing the requirement for incessant upkeep.

  • Efficiency Enhancement: Stays aware of ideal working conditions, in this way dealing with as a rule and proficiency.

Features

  • Low Friction: Limits wear and rubbing, bringing about smoother activity and decreased energy utilization.

  • Easy Installation: Straightforward establishment process requires insignificant free time, working with quick mix into existing frameworks.

  • Maintenance-Free: Requires minimal maintenance, contributing to cost savings and operational convenience.

Advantages and Highlights

  • Superior Protection: Offers unmatched confirmation against contamination, drawing out the future of essential contraption parts.

  • Cost-Effective Solution: Limits upkeep costs and free time, meaning massive expense investment funds over the long haul.

  • Enhanced Performance: Works on the unwavering quality and productivity of pivoting hardware, guaranteeing continuous activity in requesting modern conditions.

Application Areas

The TK Labyrinth Seal finds application across various industries, including:

  • Oil & Gas

  • Chemical Processing

  • Power Generation

  • Mining

  • Food & Beverage

  • Pharmaceutical

OEM Service

We offer OEM services to meet specific customer requirements, providing tailored solutions to suit diverse industrial applications.

FAQ

Q: Can the TK Labyrinth Seal withstand high temperatures?

A: Yes, our seals are designed to withstand temperatures ranging from -50°C to 200°C (-58°F to 392°F), ensuring reliable performance in extreme operating conditions.

Q: What shaft diameters are compatible with your seals?

A: Our seals are compatible with shaft diameters ranging from 25mm to 200mm, and we also offer customization options to accommodate specific requirements.

For requests or to submit a request, if it's not too much trouble, reach us at angie@idlerchina.com.

As an undertaking coordinating logical exploration, creation, handling, and deals, we are focused on conveying premium-quality fixing arrangements that meet the advancing necessities of our clients around the world.Choose it for unparalleled reliability and performance in your industrial applications.

Description

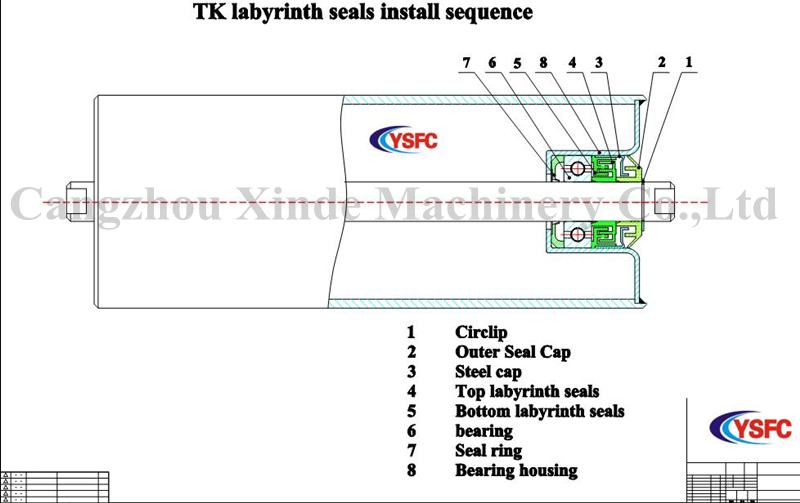

It uses a new type of roller seal that protects the roller bearings from water and dust at both ends of the roller with the belt conveyor. It consists of five parts: inner seal, outer seal, bearing, middle seal and end seal. It is mounted on the small shaft, and the shaft is clamped as the shaft and axial force, so that the middle seal and the end seal form “0”. "Type waterproof cavity and eccentric spherical cyclone cavity, thus achieving the function of bearing waterproof and dustproof.

Parameter

Material:ABS resin, Nylon, Hdpe, Polyurethane, polyformaldehyde and so on

Feature:dust proof, water proof which can be used in harsh working conditions

Specification:6204,6205,6305,6306,6307,6308,6309,6310 and so on

Feature

TK Maze Seal is made of ABS pitch, which enjoys the exceptional benefits of low frictional opposition, no crawling, great self-greasing up execution and typical activity without a trace of oil. The chemical and physical properties of the material are very stable, excellent in corrosion resistance, outstanding in tackiness, and operating temperature range of -60C to +250C. At the same time, it has excellent dynamic and static sealing characteristics, good wear resistance and long service life.


Tk labyrinth seal1.png

Hot Tags: tk labyrinth seal, China, suppliers, manufacturers, factory, customized, wholesale, cheap, pricelist, buy discount, low price, in stock, for sale, free sample, made in China,  DTII Idler Roller Seals, Conveyor Roller Seals, Conveyor Roller Bearing Housing, Conveyor Roller Parts, Flanging Bearing Housing, Steel Bearing Housing
