Conveyor Roller Components

Conveyor Roller Components

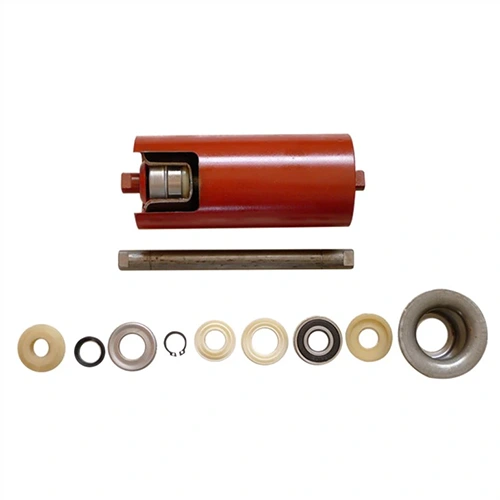

We can offer the whole set of conveyor roller parts, including conveyor roller tube, conveyor roller shaft,conveyor roller bearing housing and seals.

Introduction to Conveyor Roller Components

Transport roller parts are key components of transport frameworks, working with the smooth and productive development of materials across different ventures. These parts assume a urgent part in upgrading efficiency, lessening difficult work, and guaranteeing safe material taking care of tasks. As an expert maker coordinating logical exploration, creation, handling, and deals, we value conveying great transport roller parts customized to meet different modern necessities.

Basic Details of the Product

Transport roller parts comprise of round and hollow cylinders, shafts, orientation, seals, and different embellishments intended to help and guide transport lines. These parts are regularly built from sturdy materials like steel, aluminum, or high-thickness plastics to endure weighty burdens and unforgiving working circumstances.

Product Standards

Our conveyor roller components adhere to stringent quality standards, including ISO 9001:2015 certification, ensuring reliability, durability, and consistency in performance.

Basic Parameters

Below are the basic parameters of our conveyor roller components:

Tube

tube special for roller, compared with ordinary steel tube, it has great

advantages in diameter,thickness tolerance, bending degree, ovality and

so on which can make the roller have minimum play radial eccentricity

Shaft

high precision cold-drawn steel which has high brightness and little tolerance.

Bearing

use deep groove ball bearing with big C3, C4.clearance, which can make

rollers revolve flexibly. Bearing type is 2RZ and 2RS with oil seal which

have advantage in dust proof.

Bearing Housing

formed by many times of punching which can make precise size

Type:Straight edge and flanging edge

Seals

Seals Type: DTII, TD75, TK Contact, TK labyrinth, TKII

Material:  ABS resin, Nylon, Polyurethane, polyformaldehyde and so on.

ParameterStandard Value
Tube Diameter60mm - 219mm
LengthCustomizable
Shaft Diameter20 mm - 50mm
Bearing Housing Diameter60,76,89,101.6,108,114,127,133,152,159,178,194,219mm
Bearing Specification6204,6205,6206,6207,6305,6306,6307,6308,6309,6310,6312
Seals Specification6204,6205,6206,6207,6305,6306,6307,6308,6309,6310,6312

Product Attributes

  • Robust construction for prolonged service life

  • Low friction bearings for smooth operation

  • Corrosion-resistant materials for durability

  • Easy installation and maintenance

  • Customizable options to suit specific applications

Product Functions

Conveyor roller components function as support and guidance mechanisms for conveyor belts, enabling efficient material transport, direction control, and accumulation along the conveyor line.

Features

  • Precision-engineered for optimal performance

  • Versatile design compatible with various conveyor systems

  • Noise reduction features for quieter operation

  • Suitable for both indoor and outdoor applications

Advantages and Highlights

  • Enhanced productivity through streamlined material handling

  • Reduced maintenance costs and downtime

  • Improved workplace safety with reliable conveyor operations

  • Customization options to meet specific industry requirements

Application Areas

Conveyor roller components find extensive applications across industries such as:

  • Manufacturing

  • Distribution and logistics

  • Mining and quarrying

  • Agriculture

  • Food processing

  • Automotive

OEM Service

We offer OEM administrations to take care of the particular necessities and marking prerequisites of our clients. Our accomplished group can alter transport roller parts to meet exceptional determinations and marking inclinations.

FAQ

Q: What are the lead times for your product?

A: Lead times vary depending on the order volume and customization requirements.

If it's not too much trouble, get in touch with us for point by point data in regards to lead times for your particular request.

Q: Do you give establishment backing to your items?

A: Indeed, we offer establishment direction and specialized help to guarantee the consistent mix of our transport roller parts into your transport frameworks.

For additional requests or to submit a request, kindly reach us at angie@idlerchina.com. Experience the unwavering quality and execution of our transport roller parts for your material taking care of requirements.

Conveyor Roller Components

We can offer the entire arrangement of transport roller parts, including transport roller tube, transport roller shaft,conveyor roller bearing lodging and seals.

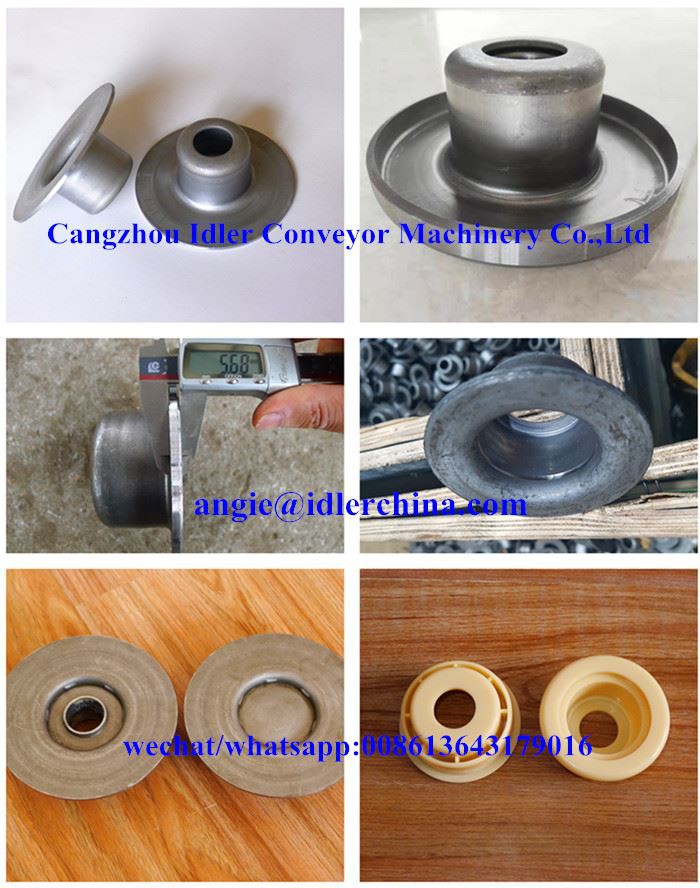

Conveyor Roller Bearing Housing

Diameter:60,76,89,108,114,127,133,140,152,159,165,178,194,219mm

Bearing Specification:6204,6205,6305,6206,6306,6207,6307,6308,6310,6312

Type:Straight edge bearing housing, flanging edge bearing housing,circlip groove bearing housing,thicken bearing housing,plastic bearing housing,locking notch bearing housing

bearing housing

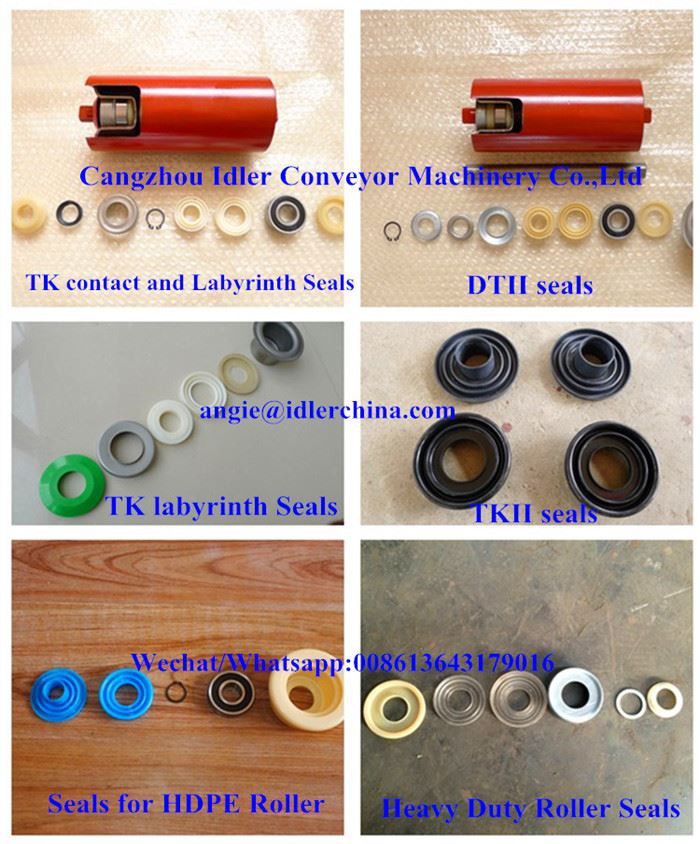

Conveyor Roller Seals

Specification:6204,6205,6305,6306,6307,6308,6309,6310,6312

Seals Type:DTII seals,TK labyrinth Seals, TK contact and labyrinth seals,TKII seals and seals for HDPE roller

Material:ABS resin,Nylon,Polyurethane,Polyformaldehyde and so on

Features:Waterproof Dustproof

seals

Hot Tags: conveyor roller components, China, suppliers, manufacturers, factory, customized, wholesale, cheap, pricelist, buy discount, low price, in stock, for sale, free sample, made in China,  Conveyor Roller Parts, Conveyor Roller Bearing Housing, TK Labyrinth Seal, Conveyor Roller Seals, Steel Bearing Housing, Conveyor Roller Shaft

YOU MAY LIKE

Conveyor Roller Bearing Housing

Conveyor Roller Bearing Housing

​Material:08 F with high tensile strength,high hardness,good toughness and easy to be welded and punched not easy to crack
View More

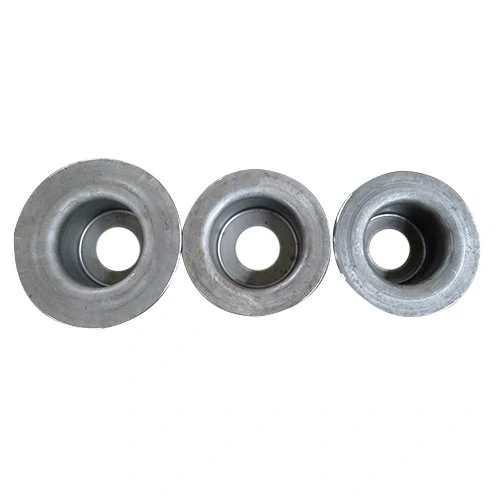

Steel Bearing Housing
